Clear Span Building with Full Length Clerestory

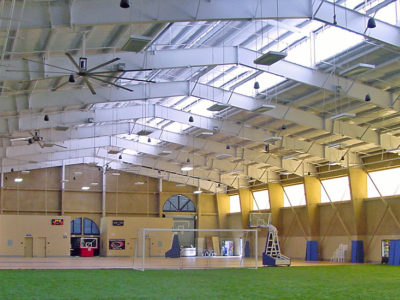

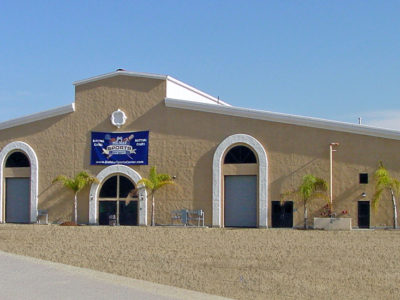

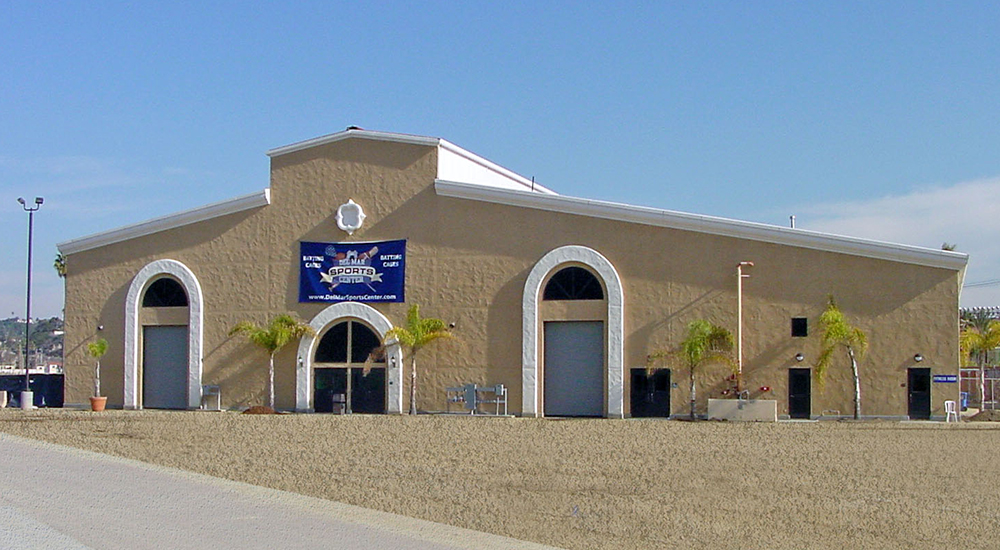

This sports facility was designed using a custom CBC steel building at 119’ wide x 312’ long clear span with a 29’ x 4” eave and a 2:12 roof slope. A 31’-5” full length clerestory by 6’-8” high and a 38’ x 98’ lean-to. The roof panels are standard R-Panels. All the walls are studs with stucco and masonry.

  • Location: Del Mar, CA
  • Size: 40,776 sf
  • Roof System: R-Panel
  • End Use: Sports Facility
